PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

Brand Name : GWELL

Model Number : GWC92/188,GWC80/156

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 sets/year

Delivery Time : 90 days after all the technical specification are confirmed

Packaging Details : STRETCHING FILM, PLASTIC FILM PACKAGE, WOODEN CASES PACKAGE FOR KEY PARTS

Certification : CE

Product name : PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

Machine type : Composite plastic floor extrusion line

Brand : GWELL

Suitable material : LVT

Width : 1000mm

Thickness : 1.5-5mm

Screw design : conical twin screw

Country of origin : China

Warranty : One year

After-sales service : installation and machine debug

Contact Now

PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

1. Process of PVC Flooring Production Line

Floor materials such as PVC Flooring Production Line, mixed by high speed mixer mixing and delivered by rotating conveyor to the conical twin-screw extruder, then extuded by T die and attach the wear-resisting layer and printing layer to the product with specified thickness. Extrusion laminating process can replace the traditional rolling, laminated and complex process. It is easy to operate, has low investment cost, and can reduce the labor intensity of workers. Also it can keep workshop clean, and the production line will adopt optical sensor detection and alarm, so it has a high degree of automation.PVC Floor Making Machine

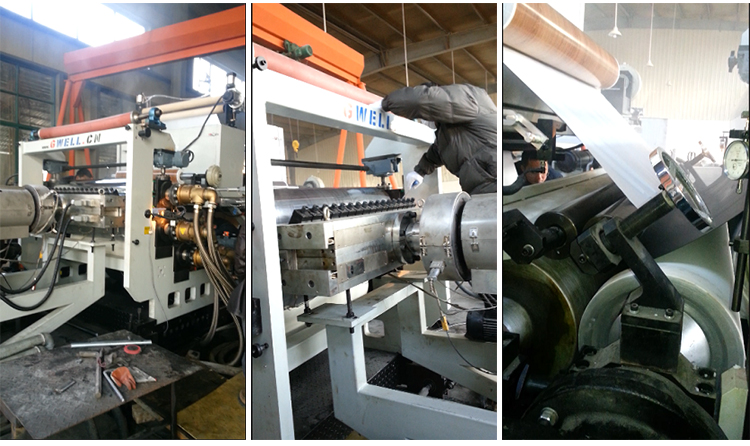

PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

2.Models of PVC Flooring Production Line

Type of extruder Conical twin-screw extruder GWC80/156 Conical twin-screw extruder GWC92/188 Parallel twin-screw extruder GWP75/36
Width of product 1000mm 1000mm 1000mm
Thickness of product 1.5mm-2mm 2mm-5mm 1.5mm-5mm
Output 350kg/h-400kg/h 550kg/h-650kg/h 400kg/h-500kg/h

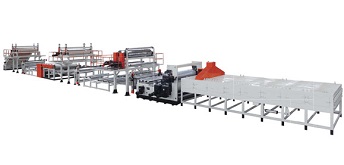

PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

3. Introduction of PVC Flooring Production Line

The production process of PVC Flooring Production Line of GWELL company is:

(1) The raw material will be automatic fed into high-speed mixing,

(2) Then it is automatically fed into the twin-screw extruder,

(3) Then the melt material will be extruded out from the T-die which is special for plate,

(4) After going through the T-die, the plate will be formed by the calibration table and cooled by cooling brackets,

(5) Then the board will be through the edge trimming unit, traction unit, automatic cutting unit, automatic lifting unit, roller conveyor, etc.

The unit has a compact structure and superior performance.PVC Flooring Production Line

The screw and barrel are optimized and processed with high-performance alloy steel, so that the whole machine has the advantages of uniform plasticization, stable extrusion, high output, and long life. The main barrel is heated by cast aluminum heater, cooled by air, and the temperature is controlled by precision electronic control instrument. The precise shaping and calendering device, through its good adjustment function, makes the plate shape excellent. The cutting part adopts a fixed-length cutting device to ensure the precise length of the plate.

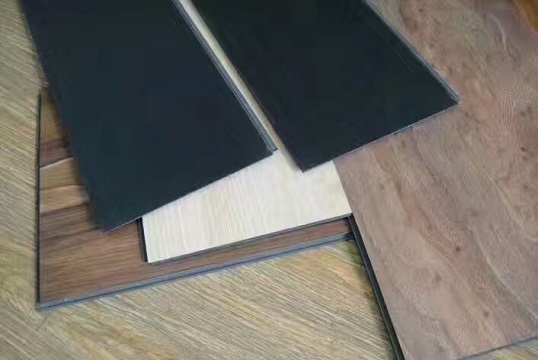

PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

Gwell plastic transparent sheet unit production line absorbs and digest western country advanced extrusion technology. And its main parts choose from all over the world (such as screw, barrel, roller, etc.). The energy consumption of its complete sets of equipment , intelligent, automation, safety standard, technology standard, etc., have been at or near the world standard of the product. This series of products has a number of inventions and utility model patents so that it replaces imported equipment, and has a cost-effective advantage. The high-level transparent plate products are widely used in optics, home appliances, construction engineering, decoration, furniture, advertising, handicrafts and other industries and civil industries. Its quality has reached the world's product performance, and we have a matching team of experts and process engineers to help users debug, produce high-quality products.

3. Models of PVC Flooring Production Line

Type of extruder Conical twin-screw extruder GWC80/156 Conical twin-screw extruder GWC92/188 Parallel twin-screw extruder GWP75/36
Width of product 1000mm 1000mm 1000mm
Thickness of product 1.5mm-2mm 2mm-5mm 1.5mm-5mm
Output 350kg/h-400kg/h 550kg/h-650kg/h 400kg/h-500kg/h


PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process

PVC Flooring Production Line PVC Floor Making Machine Manufacturing Process
