SGP PV Encapsulation Film Making Machine For BIPV Solar Panel

SGP PV Encapsulation Film Making Machine SGP Solar Film Production Line For BIPV Solar Panel

1. Introduction of SGP PV Encapsulation Film Making Machine

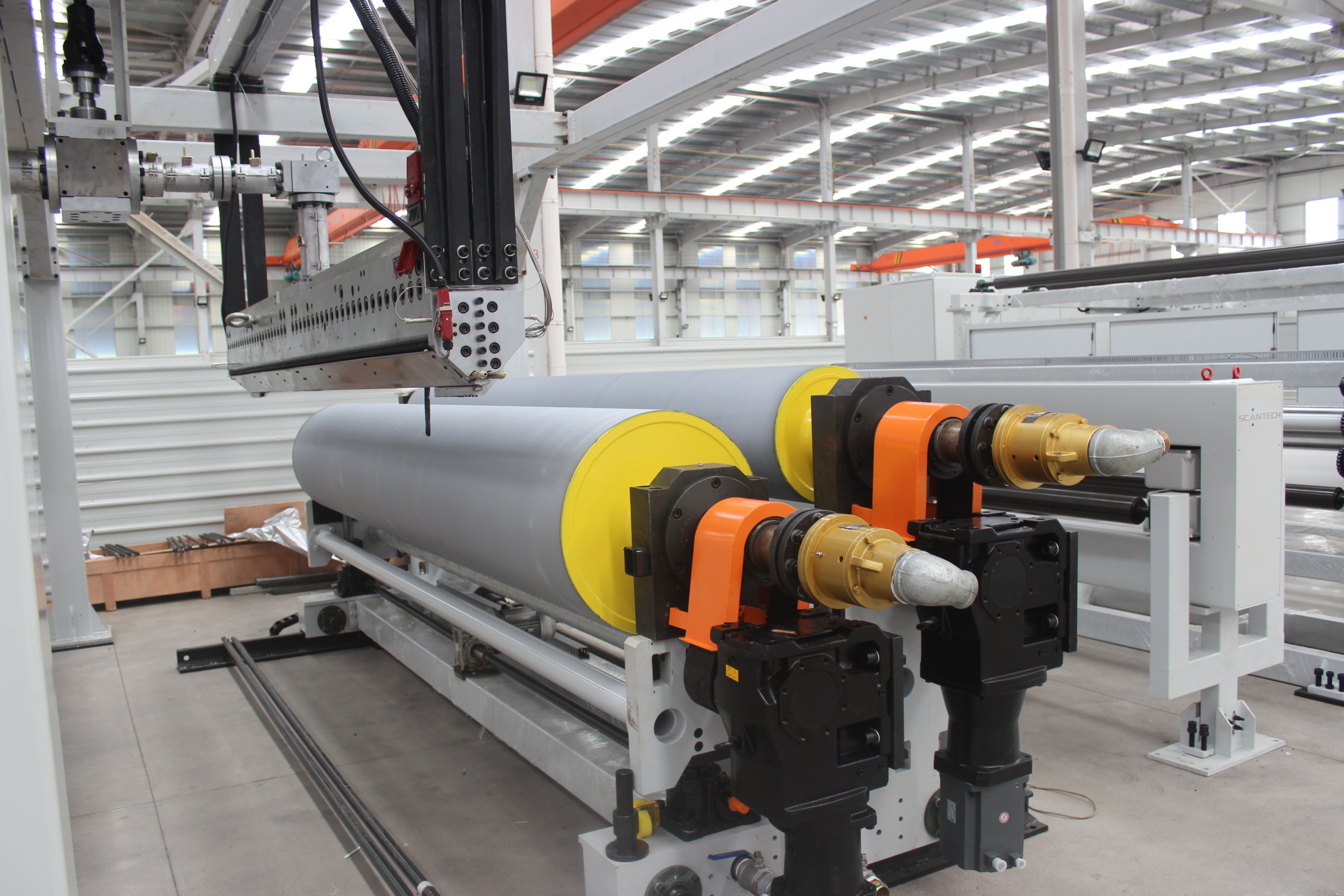

The SGP PV Encapsulation Film Making Machine manufactured by GWELL adopts unique design and advanced manufacturing technology, which improves the stability and automation of the machine. The feeding system is connected with the extruder to realize the accurate online proportioning of raw materials, so that the quality of the SGP film is stable and labor cost will be reduced. Specially designed rollers are used to cool the SGP film uniformly and reduce the stress caused by uneven heating and cooling, thereby ensuring the correct shrinkage rate. Since the SGP film is relatively viscous, we have added an isolation film unwinding device to effectively prevent the SGP film from sticking together during rewinding.

2. SGP PV Encapsulation Film Making Machine introduction:

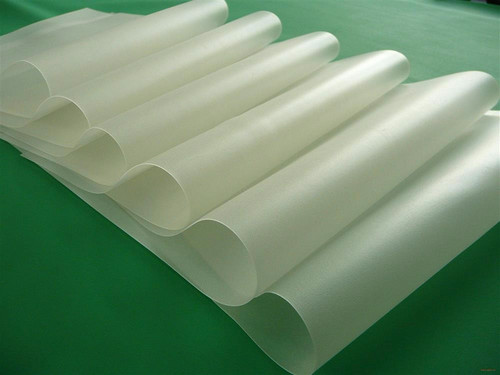

SGP film is mainly used for BIPV modules, the structure is tempered glass (super white)-SGP-cell-SGP-tempered glass (ordinary).

At present, the encapsulation forms of photovoltaic modules mainly include glass-EVA-backplane type and glass-SGP-glass type. I will elaborate on the SGP encapsulation film and SGP encapsulation film production line.

Photovoltaics is a rapidly developing emerging industry that converts solar energy into electrical energy. Among them, crystalline silicon solar cell modules are mainly used in large-scale grid-connected power generation, off-grid power stations, BIPV photovoltaic building integration, etc., and SGP encapsulation film production lines are mainly used in BIPV buildings,photovoltaic power generation components.

3. Comparison of SGP PV Encapsulation Film and EVA encapsulation film

EVA is a thermosetting resin with cross-linking reaction; SGP is a thermoplastic resin with reproducibility and no cross-linking reaction;

The domestic glass curtain wall specification clearly puts forward the requirement of "application of SGP". And BIPV photovoltaic modules using SGP instead of EVA can achieve a longer service life.

SGP has strong bonding performance and is safer than EVA film;

There are many formulas for EVA, and the packaging process is not easy to control; the formula for SGP film is simple, the quality control is stable, and the shelf life is long;

SGP film has poor fluidity, which can prevent film overflow during processing.

4. Comparison of SGP film and PVB film:

Excellent mechanical properties: higher strength. Under the same thickness, the bearing capacity of SGP laminated glass is twice that of PVB; under the same load and thickness, the bending deflection of SGP laminated glass is one-fourth of PVB;

Tear strength: Under the same thickness, the tear strength of the PVB laminated film is 5 times that of PVB. It can also be bonded to the glass in the case of tearing, and the glass will not fall off the whole piece.

Strong stability and moisture resistance: SGP laminated film is colorless and transparent, anti-ultraviolet, it is not easy to turn yellow after long-term exposure to sunlight and rain, and its yellowing coefficient is less than 1.5. However, the yellowing coefficient of PVB interlayer film is 6-12. Although the production process of SGP is close to that of PVB.

5. Machine model of SGP PV Encapsulation Film Making Machine

Encapsulation Film Making Machine

BIPV Solar Panel Film Making Machine

Solar Panel Cast Film Extrusion Line

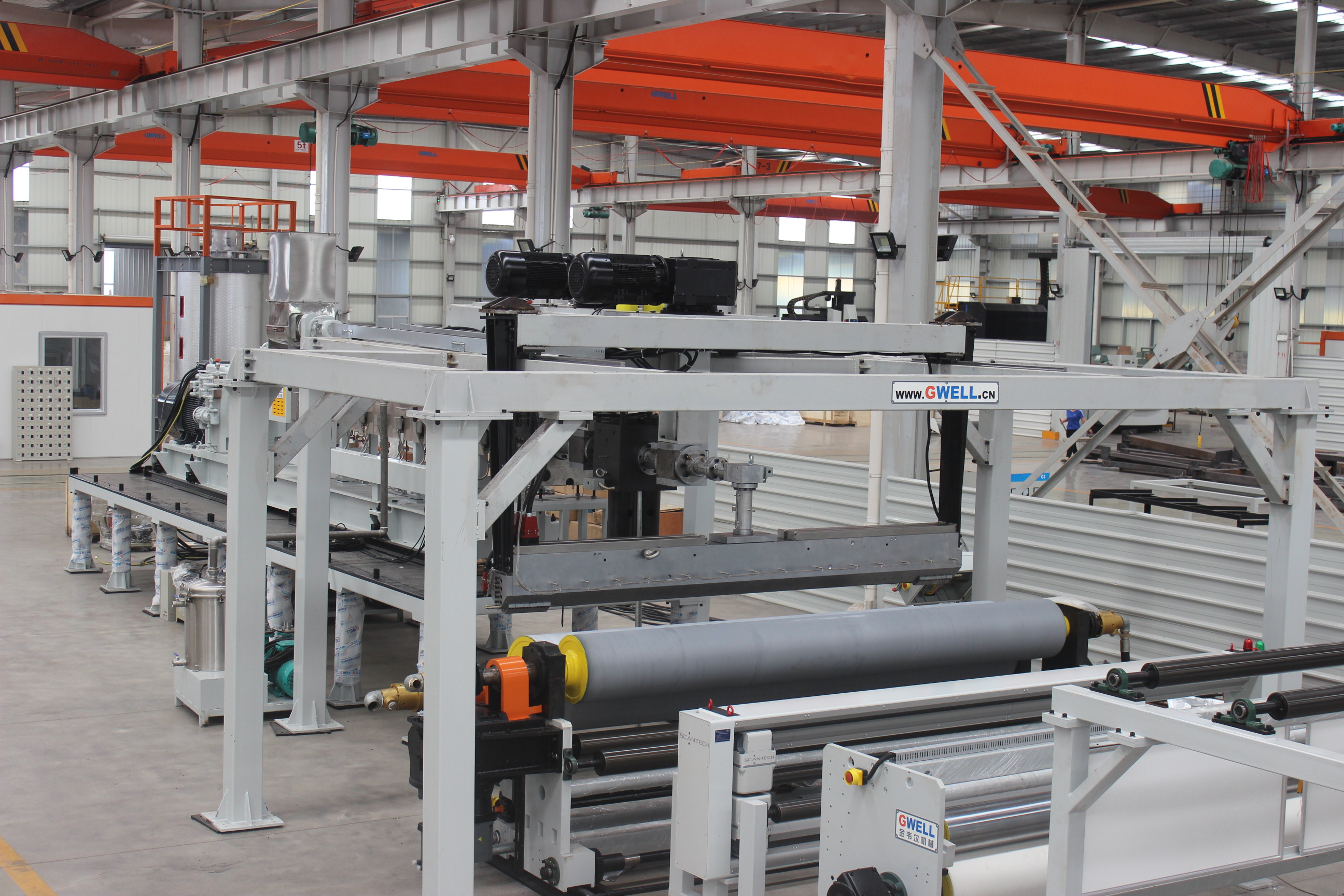

SGP PV Encapsulation Film Making Machine For BIPV Solar Panel Images
